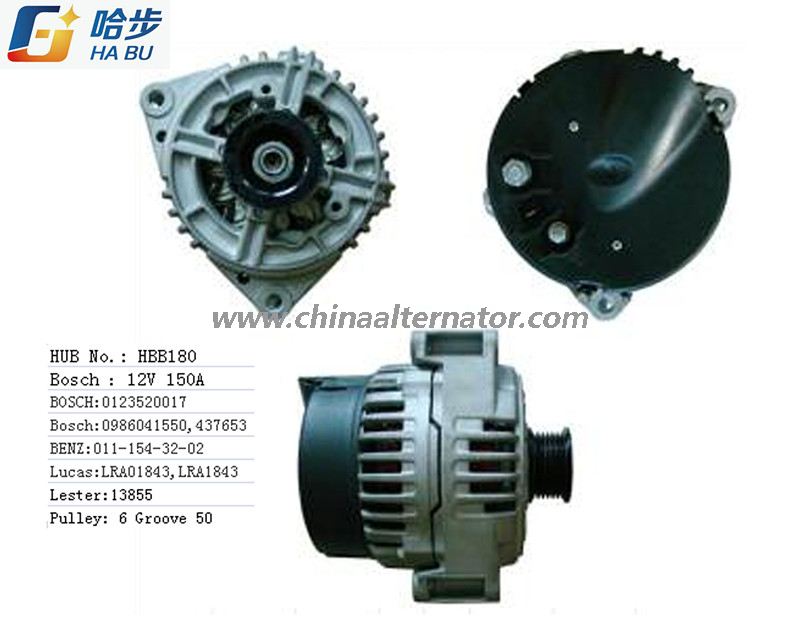

Ac Alternator for Bosch Lester 13855 0123520017

Model NO.: Lester 13855 0123520017
Structure: Cw
Current Level: 9(≥90A)
Brushless Alternator Type: Magnetizing Type
Voltage: 12V
Brand: Bosch
Rotation: Cw
Regulator Voltage Set Point: 14.5 ± 0.3 V
Trademark: ATL
Specification: Alternator 12V 150A
HS Code: 87081000
Type: Alternator
Rectifier Structure: Six Tubes
Bonding Type of Magnetic Field Winding: Inner Bonding
Voltage Adjuster Type: Electromagnetic Vibratory
Head Cover Position: Front
Alternator: 12V 150A
Output Tested: 12.8V
Net Weight: 7.1 Kg
Transport Package: No. 2 Cartons (24*18.8*15.8)
Origin: Nanjing
Availability:
Quantity:
Inquire Add to Basket

  • HBB180

  • HABU

  • 8511509000

Unit TypeAlternator
Part TypeUNIT
Voltage12
RotationCW
Amperage150
Pulley ClassS6
RegulatorIR
Fan TypeIF
ManufacturerBOSCH
BriefMERCEDES CL500, S430, S500 1999-01
6-GROOVE PULLEY 50mm OD
SEARCH: 494239 (ISKRA)
DetailedThis is Very Similar to the 13710 13779 and 13792 (Also Used on Mercedes) Except Using a Different Rear Cover Regulator Rectifier and Other Internal Parts.

MFG#MFG NAME



ABO0253ARROWHEAD
13855LESTER
220-5043PIC
13855BBB
13855BBB NEW
186-0982BECK ARNLEY
0-123-520-017BOSCH
113489CARGO
A-6375DIXIE
10500EXCEL
LRA01843LUCAS ELECTRICAL EUROPE
011-154-32-02MERCEDES BENZ
15116MPA
213-9551NAPA POWER PREMIUM PLUS
A2855USA INDUSTRIES
1-2395-31BOWAI
90-15-6380WILSON
90-15-6380WILSON NEW
12043WORLDWIDE


1.Accept OEM,ODM.
2.Can print logo on the case and package;
3.Terms of payment: T/T or Western Union optional;
4. Guarantee : 1 year warranty.
For service
1.Your inquiry can be respond in 12 hours.
2.All question can be answered by our well-trained and experienced staff in English
3. According to the customer incoming sample custom,within 45days to complete and provide samples.
4.All private information such as the sales area, ideas, design etc. can be protected.
5.Delivery by DHL, UPS, EMS or by sea as your requirements.
